Pre-insulated Terminal Manufacturer
Datetime: 8/23/2019 9:52:00 AM Visit: 1084
Yueqing Qiligang Plastic Co., Ltd was established in 1996, is specialized in manufactuing and selling various plastic products, such as nylon cable ties, nail cable clips, expandnails, nylon cable glands, witing ducts, tube pre-insulating terminals, cable markers, safety-type wire joints, screw on wire co-nnectors, spiral wrapping bands, and set pieces, as well as such metal products as tube nude terminals and copper tube terminals and so on. We have self R&D Team.We can accept constructing plastic mould task if you have special design.
Our products are exported to Southeast Asia, Africa, Europe, America, Australia, and other countries and regions, and obtained the high reputation by the customers all over the world. In order to further enlarge our business, we are looking forward to receiving more specific enquiries and cooperating strongly with all clients based on mutual benefits.
Yueqing Qiligang Plastic CO., LTD with whole hearted to develop our business with the company all of the world, hand in hand and come to success.
Phone: +86-577-62658186
Fax: +86-577-62658185
Email: sales@qiligang.com
product description
The tubular pre-insulated terminal is one of the types of cold-pressed crimp terminals, and is also referred to as a pin-type cold-pressed terminal in the industry. The main function is a kind of accessory product that is electrically conductive and realizes electrical connection, and is industrially divided into the category of connectors.
Detailed introduction
1.The shapes of pre-insulated terminals: Hook, fork, tube
2.Uses high purity industrial copper
3.Plated with inferior mere tin
4.Rears and sews the place
5.Welded with silver on the surface
6.Interior holes with whorl line and imported insulated covering of PVC material
7.International common color distinguish
Characteristics
1. Tubular insulated terminals improve insulation safety and prevent wire bifurcation when the wire terminals are in close proximity.
2. Tubular insulated terminals make it easier to insert wires into the ends.

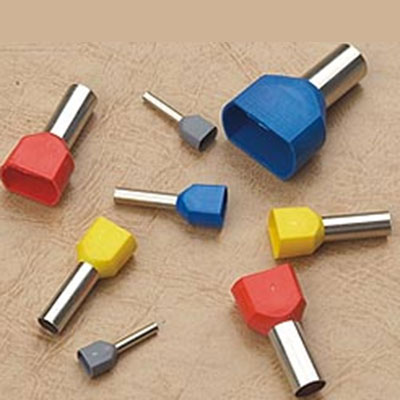

Cord End Terminals-Twin Cable Type
Material: PP+Copper
Insulation: Nylon or PP
Body: Copper
Plating: Tin
| ITEM.NO. | CONDUCTORmm2 | DIMENSION | COLOR | |||||
| F | L | W | B | DФ | CФ | |||
| TE-0508 | 2×0.5 | 8 | 14.5 | 5 | 6.5 | 1.8 | 1.5 | White |
| TE-7508 | 2×0.75 | 8 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | Blue |
| TE-7510 | 2×0.75 | 10 | 16.07 | 5.5 | 6.7 | 2.1 | 1.8 | Grey |
| TE-1008 | 2×1.0 | 8 | 15.1 | 5.5 | 7.1 | 2.3 | 2 | Red |
| TE-1010 | 2×1.0 | 10 | 17.1 | 5.5 | 7.1 | 2.3 | 2 | |
| TE-1508 | 2×1.5 | 8 | 15.5 | 6.4 | 7.2 | 2.6 | 2.3 | Black |
| TE-1512 | 2×1.5 | 12 | 19.5 | 6.4 | 7.5 | 2.6 | 2.3 | |
| TE-2510 | 2×2.5 | 10 | 18.5 | 8 | 8.5 | 3.3 | 2.9 | Grey |
| TE-2513 | 2×2.5 | 13 | 21.5 | 8 | 8.5 | 3.3 | 2.9 | Blue |
| TE-4012 | 2×4.0 | 12 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Orange |
| Grey | ||||||||
| TE-6014 | 2×6.0 | 14 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Green |
| Yellow | ||||||||
| TE-10-14 | 2×10.0 | 14 | 26.6 | 12.6 | 12 | 6.9 | 6.5 | brown green |
